PLAMEN 145 cooker family is distinguished by top quality and modern design. "Cast iron heart" is the typical motto of its recognizable quality. Large cast iron firebox is suitable for use of big logs.
The cooking plate is coated with black enamel, applied by a special single-layer enamelling technique, for easy cleaning and maintenance. The oven is made of stainless sheet steel with glazed door furnished with a baking temperature control device for safe and controlled baking. Below the oven, there is a compartment for warming the food over or keeping it warm. In LUX version, the glazed firebox door offers the view of the fire, thus creating a comfortable and warm atmosphere.
This cooker is available in LEFT and RIGHT flue connection design. In both versions, flue gas is discharged through a pipe ID Ø 118 mm, designed for top and rear installation.
This product is no longer being manufactured

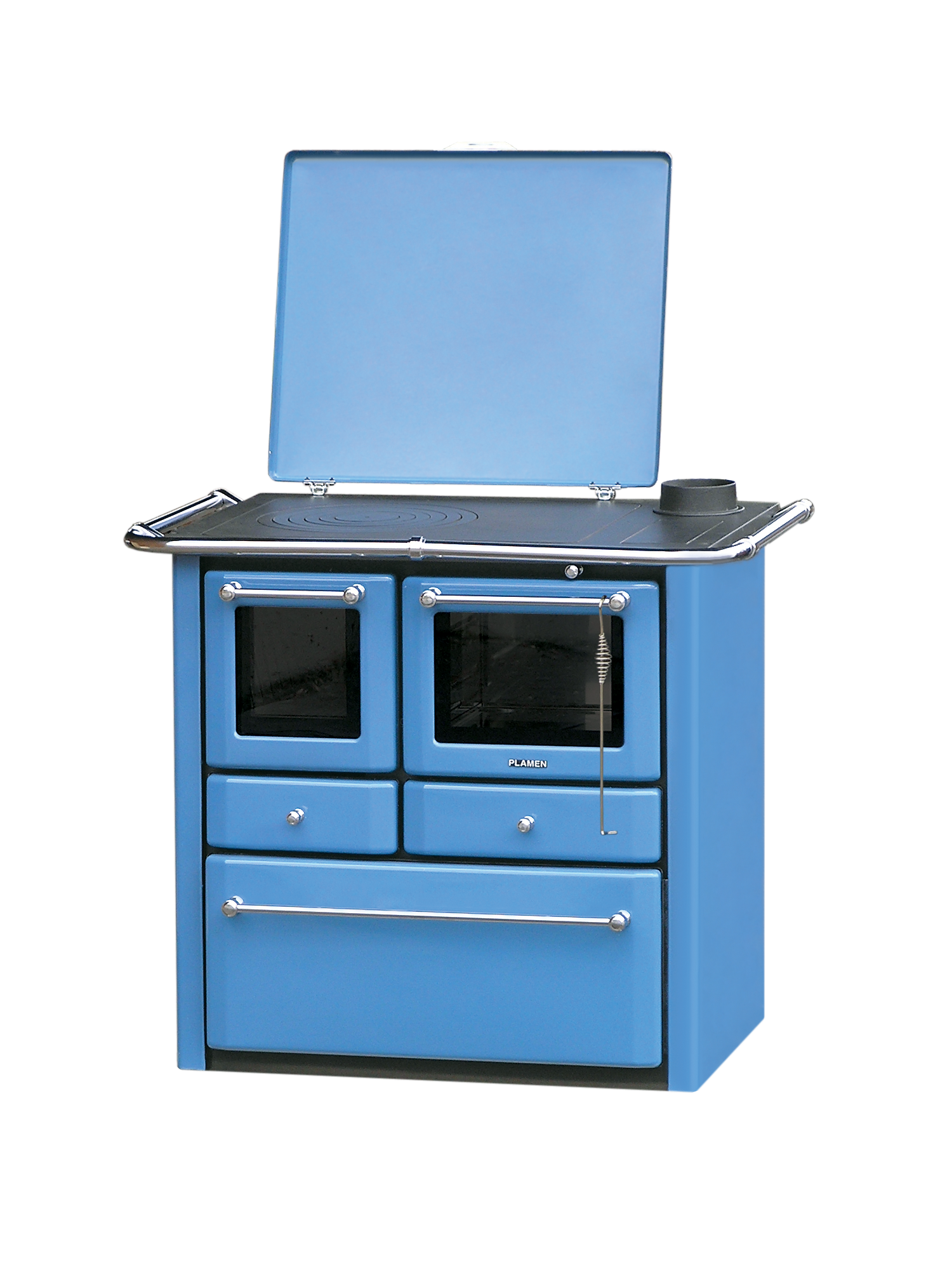

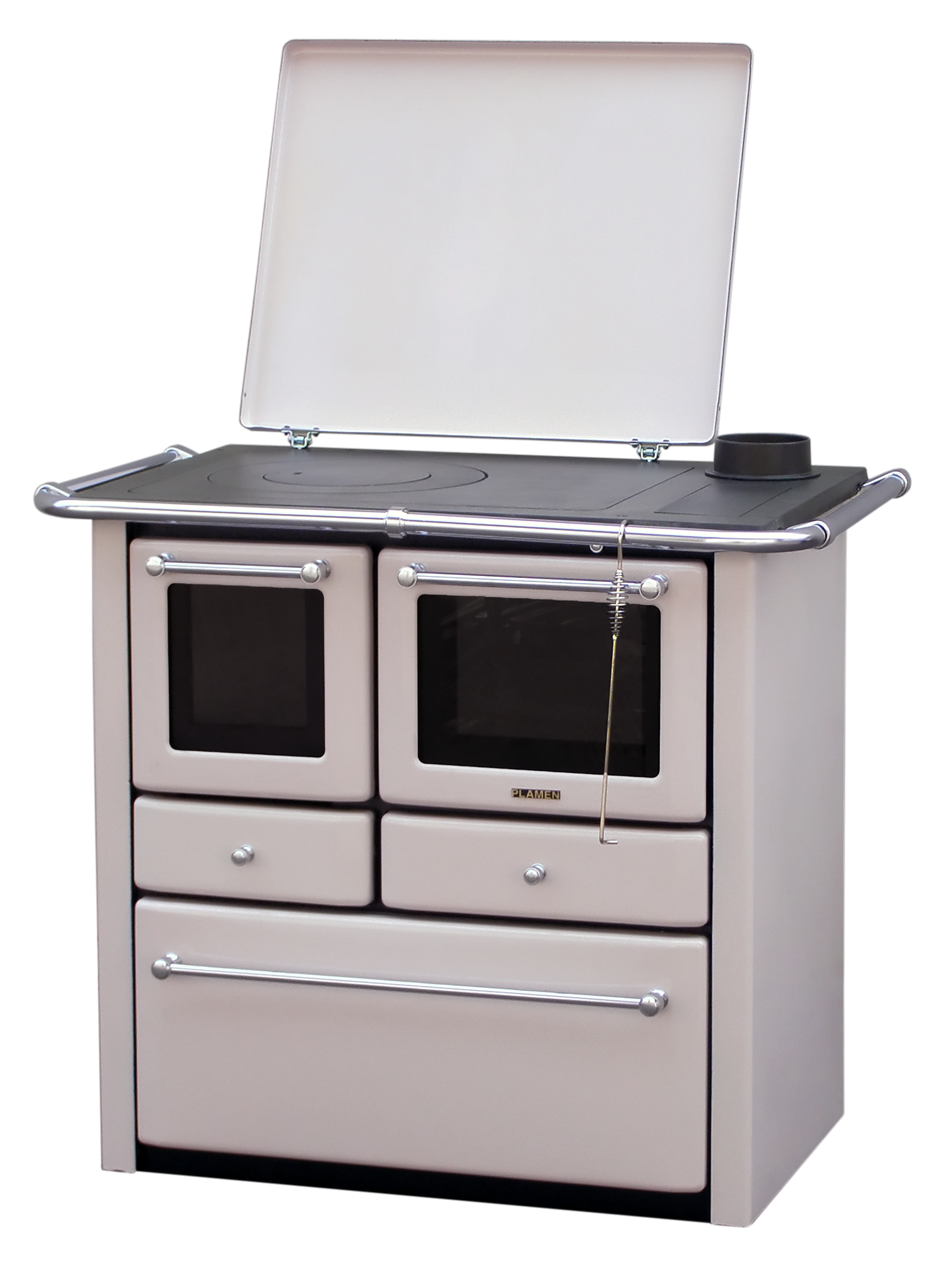

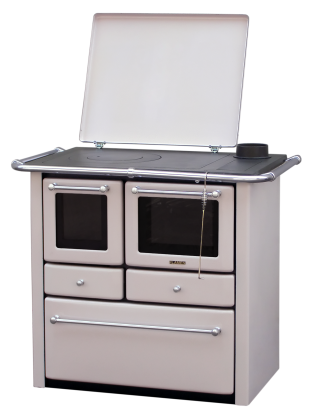

PLAMEN - 145/LUX
Solid fuel burning cooker
|
Dimensions (WxHxD) | 955 x 825 x 600 mm |
|
Rated output | 8 kW |
|
Maximum output | 11 kW |
|
Weight | 137 kg |
|
Heated space | 160 m3 |
|
Fluepipe | Ø 120 mm |
|
Discharge height from the floor | 705 mm |
|
Fule loading opening dimensions (WxH) | 185 x 190 mm |
|
Firebox dimensions (WxHxD) | 230 x 280 x 390 mm |
|
Owen size (WxHxD) | 350 x 248 x 410 mm |
|
Energy efficiency | 73.1 % |
|
Standard | EN 12815 |
User Manuals |
|
| LUX.pdf |
|
